A standard machine with a good balance between precision and cost

Micron level tolerance realized with Single-Pass processing

　High precision and long tool life have been realized through the incorporation of an oscillation mechanism that is synchronized to the main shaft. 　The amplitude can be set to a range of 0 to 3 mm. The amplitude can also be adjusted to suit the quality of work materials, which widens the range of machining accuracy and production rate. 　By combing this with a reamer from TAKEZAWA-SEIKI, a micron-precision tolerance can be realized with a Single-Pass honing process.

Maximum processing diameterφ30

　A high-output motor of 1.5 kW is mounted on the machine; which allows honing up to a diameter of 30 mm*.

*Figures are reference values. Maximum processing diameters will vary depending on the machining conditions.

Compatible for complete automation

　The connecting of mechanisms for supplying, conveying, and delivering makes full automation possible.

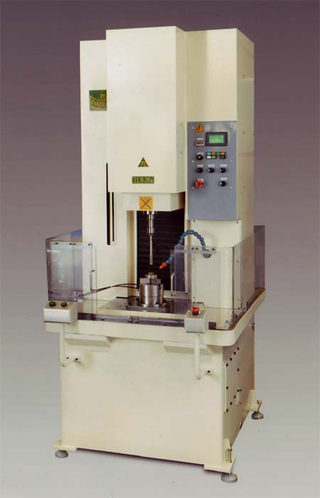

Principal specifications of TLB-20

Machining ability Maximum Honing diameter (mm) φ30 - φ60
Maximum stroke (mm) 500
Distance from bed to spindle head (mm) 560
Example of machining accuracy (FCD)
Maximum cutting stock (mm) φ0.05
Roundness(μm) 1.0 or less
Straightness (μm) 1.5 or less
Cylindricity(μm) 2.0 or less
Spindle Spindle motor power (kW) AC 2.0 - 7.5
Spindle rotation speed (rpm) 200～1800
Shank hole diameter (mm) φ20
Feed Feeding motor (kW) AC 0.4
Feeding speed (mm/min) 900
Oscillation Oscillation motor None
(spindle synchronization)
Amplitude (mm) 0 - 3
Coolant equipment Type Built-in type
Coolant pump power (kW) AC 0.4
Pump discharge rate (l/min) 30
Discharge pressure (MPa) 0.1
Tank volume ( ｌ ) 80
THL-20 Dimensions Height (mm) 2300
Width (mm) 1000
Depth (mm) 1100
Height to surface of bed (mm) 750+100
Weight (kg) 1100
Optional equipment Automatic tool expansion equipment None
Spindle oscillation mechanism OP
Workpiece chucking device OP
Transfer equipment OP
Totally-enclosed type splash guard OP
Magnet separator default
Paper filter OP
High speed type OP
High column type OP
Twin head type OP
Twin spindle type OP
Oil hole type OP
External coolant equipment OP
Other feature Universal joints can be used.
Floating　holders can be used.
